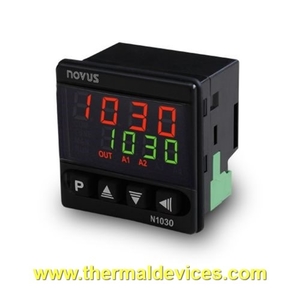

NOVUS N1030T-PR Timer/Temperature Controller 8103090002 3 PACK

The NOVUS N1030T-PR Timer/Temp. controller 8103090002 from Thermal Devices, an authorized NOVUS distributor. N1030 is a temperature controller that features a high performance PID algorithm in a compact housing, with only 35 mm depth. Its compact construction and the convenient detachable connector provide an easy set up on short profile panels, optimizing the space and reducing costs. It has two outputs always available which can be configured both as a control or an alarm. It also has two independent timers and several operation modes that redirect to one of the controller outputs ou to act joined with temperature controller. It accepts sensors Pt100 and thermocouples J/K/T and it has a quick coupling electric connection that reduce installation setup time.

Usually Ships in 3-5 Business Days

A Quantity of 1 = 3 Pieces

$191.40

SKU: 8103090002
customer service
SKU: 8103090002 Category: Tag:

Product Documentation

NOVUS N1030T-PR Timer/Temperature Controller 8103090002 3 PACK

Features of the Novus N1030T Temperature Controller:

  • Single Loop PID and ON/OFF controller
  • PID auto tuning
  • Two independent outputs available
  • Dual relay output or 1 pulse and 1 relay versions
  • Six alarm functions: LO, HI, differential, differential LO, differential HI, sensor break
  • Initial blocking alarm function
  • Adjustable alarm hysteresis
  • Thermocouples J, K, T and Pt100 input
  • Temperature unit C or F
  • Decimal place indication
  • Configurable setpoints limits
  • Password protected configuration
  • Factory configuration parameters recovery
  • Dual red and green four-digit display
  • Front panel material PC UL94 V-2
  • Enclosure material: PC UL94 V-2
  • Front panel protection: IP65
  • Operating environment: 0 to 60 C, 20 to 80 RH
  • Dimensions: 48 x 48 x 35 mm, 1/16 DIN
  • Power supply: 100 to 240 Vac/dc or 12 to 24 Vdc / 24 Vdc/ac
  • Detachable terminal block

NOVUS N1030T-PR Timer/Temperature Controller 8103090002 3 PACK

Manufacturer

NOVUS
Product Line

NOVUS N1030
Output

1.5A relay and Pulse
Power

100 to 240 Vac/dc or 12 to 24 Vdc / 24 Vdc/ac
NOVUS Code Number

8103090002
Size

48×48 mm
Controller Style

Single Loop PID and ON/OFF controller
Lead Time

3-5 Business Days (Call us at 301-831-7550 for next day shipping)
