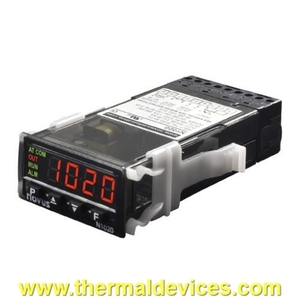

NOVUS N1020 USB RS485 Temperature Controller 8102020010

The NOVUS N1020 USB RS485 Temp. controller 8102020010 from Thermal Devices, an authorized NOVUS distributor. The temperature controller N1020 features advanced performance capability for the most complex and critical applications. Based on a high-end microprocessor and designed with a sophisticated auto-adaptive PID algorithm it continuously adjusts the PID parameters for best controlling performance.The programmable input, configurable dual output along with the full range power supply provide maximum flexibility in application.This 1/32 DIN size instrument has extremely small front dimensions of only 48×24 mm or 1/32nd DIN and is the right choice for controlling laboratory equipment when panel space is reduced.

Usually Ships in 3-5 Business Days
THIS PART HAS BEEN CONSOLIDATED INTO ANOTHER SKU. PLEASE CONTACT TECH SUPPORT FOR CORRECT SKU OR PLACE AN ORDER FOR THIS ITEM AND WE WILL CONTACT YOU WITH THE CORRECT SKU

$159.50

SKU: 8102020010
customer service
SKU: 8102020010 Category: Tag:

Product Documentation

NOVUS N1020 USB RS485 Temperature Controller 8102020010

Features of the Novus N1020 Temperature Controller:

  • Version with RS485 serial communication
  • Power supply:
    – Option 1: 100 to 240 Vac/dc
    – Option 2: 12 to 24 Vdc / 24 Vac (check availability)
  • High brightness red LED display
  • Universal input: thermocouples, Pt100 RTD and 50 mV
  • Auto-adaptive PID control
  • PID parameters auto-tuning
  • Dual output: 1 pulse and 1 relay
  • Output funtions: control, alarm 1, alarm 2
  • Configurable alarms with 8 different functions
  • Alarm inhibit function at start up
  • Programmable timer
  • F key with 3 possible functions
  • Soft-start function
  • Ramp function
  • Measured value offset
  • Minimum and maximum limits for SP setting
  • Minimum and maximum limits for output value
  • Access password for configuration protection
  • Factory calibration settings restoration feature
  • Silicone keypad
  • Front pannel: IP65, polycarbonate UL94 V-2
  • Enclosure: IP20, polycarbonate UL94 V-2
  • CE and UL certifications

NOVUS N1020 USB RS485 Temperature Controller 8102020010

Manufacturer

NOVUS
Product Line

NOVUS N1020
Output

1 relay
Power

100 to 240 Vac/dc
NOVUS Code Number

8102020010
Size

48×24 mm
Controller Style

Microprocessor based, PID controller
Lead Time

3-5 Business Days (Call us at 301-831-7550 for next day shipping)
