Watlow Plastics and General Purpose Thermocouples
Shop Now
Features
-
Flexible Extensions Tube & Wire Thermocouples - Style 60
Flexible extensions allow thermocouples to be disconnected from a system without disturbing the remaining wiring
-
SERV-RITE® Insulated Tube & Wire Thermocouples - Style 61
Style 61 is fitted with an exposed junction and is suitable for most general purpose applications, such as measuring air, gas and surface temperatures.
-
SERV-RITE® Insulated Tube & Wire Thermocouples - Style 62
Style 62 is fitted with an encapsulated measuring junction that is ideal for corrosive fluids and gases, such as sulfuric acid, hydrofluoric acid, strong mineral acids and oils
-
Perfluoroalkoxy (PFA) Encapsulated Tube & Wire Thermocouples - Style 65
The rigid sheath is covered with a 0.010 in. (0.25 mm) wall of PFA for corrosion resistance in acid environments
-
Ring Terminal Tube & Wire Thermocouples - Style 70
The nickel terminal can be placed beneath existing screws or bolts to permit surface temperature measurement
-
Nozzle Style Tube & Wire Thermocouple - Style 71
The nozzle thermocouple has a short installation depth and a low profile to allow control of thin platen sections
-
Pipe Clamp Mount Tube & Wire Thermocouples - Style 72
The stainless steel clamp allows temperature measurement without drilling or tapping which is ideal for measuring pipe temperatures
-
Grommet Style Tube & Wire Thermocouples - Style 73
The extremely low profile of the stainless steel grommet provides fast response time
-
Brass Shim Tube & Wire Thermocouples - Style 74
The shim stock thermocouple has a low profile and can be placed between components for surface temperature measurement
-
Stainless Steel Shim Tube & Wire Thermocouples - Style 75
The shim stock thermocouple has a low profile and can be placed between components for surface temperature measurement
-
Adjustable Spring and Armor Style Thermocouples - Styles 10, 11, 12
Adjustable spring style thermocouples bend to any angle to fit a wide range of hole depths, eliminating the need to stock numerous styles. A stainless steel hose offers additional lead protection in demanding applications.
-
Rigid Sheath Thermocouples - Styles 20, 23, 24, 25, 30, & 40
Plain, straight sheath - national pipe thread (NPT) SS fitting - flange - single slot (standard cap) straight - large diameter plain, straight sheath
-
Rigid Sheath Thermocouples - Styles 21, 22, 31, 32, 41 & 42
45° or 90 ° bends for plain sheath, single slot (standard cap) with spring, & large diameter sheath
Summary
Thermal Devices offers a wide range of Watlow Plastics and General Purpose Thermocouples. Watlow manufacturers a tremendous selection of general application, mineral insulated metal sheathed, base metal, high temperature, surface temperature and multipoint thermocouples. Fiberglass insulated thermocouples are capable of temperatures up to 900°F (480°C) for continuous operation. Watlow provides grounded, ungrounded and exposed junctions. Watlow uses a verification process at selected temperature points to ensure products conform to ASTM error limits. Same day shipment on millions of thermocouple configurations is available. Contact a Thermal Devices’ Sales Engineer for more information! Or, request a quote.
Product Description
Thermal Devices carries the following Watlow Plastics and General Purpose Thermocouples:
Flexible Extensions Tube & Wire Thermocouples – Style 60
Flexible extensions allow thermocouples to be disconnected from a system without disturbing the remaining wiring
SERV-RITE® Insulated Tube & Wire Thermocouples – Style 61
Thermocouples feature flexible SERV-RITE® wire insulated with woven fiberglass or high temperature engineered resins. For added protection against abrasion, products can be provided with stainless steel wire braid and flexible armor. ASTM E230 color-coding identifies standard catalog thermocouple types.
The addition of a metal sheath over the thermocouple provides rigidity for accurate placement and added protection of the sensing junction.
SERV-RITE® Insulated Tube & Wire Thermocouples – Style 62
Style 62 is fitted with an encapsulated measuring junction that is ideal for corrosive fluids and gases, such as sulfuric acid, hydrofluoric acid, strong mineral acids and oils
Perfluoroalkoxy (PFA) Encapsulated Tube & Wire Thermocouples – Style 65
An epoxy seal improves moisture resistance of the sensor and provides a barrier for migrating fumes in corrosive applications.
Ring Terminal Tube & Wire Thermocouples – Style 70
The nickel terminal can be placed beneath existing screws or bolts to permit surface temperature measurement
Nozzle Style Tube & Wire Thermocouple – Style 71
The nozzle thermocouple has a short installation depth and a low profile to allow control of thin platen sections
Pipe Clamp Mount Tube & Wire Thermocouples – Style 72
The stainless steel clamp allows temperature measurement without drilling or tapping which is ideal for measuring pipe temperatures

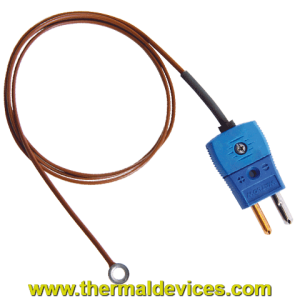

Grommet Style Tube & Wire Thermocouples – Style 73
The extremely low profile of the stainless steel grommet provides fast response time
Brass Shim Tube & Wire Thermocouples – Style 74
The shim stock thermocouple has a low profile and can be placed between components for surface temperature measurement
Stainless Steel Shim Tube & Wire Thermocouples – Style 75
The shim stock thermocouple has a low profile and can be placed between components for surface temperature measurement

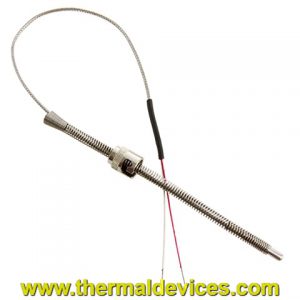

Adjustable Spring and Armor Style Thermocouples – Styles 10, 11, 12
Adjustable spring style thermocouples bend to any angle to fit a wide range of hole depths, eliminating the need to stock numerous styles. A stainless steel hose offers additional lead protection in demanding applications.

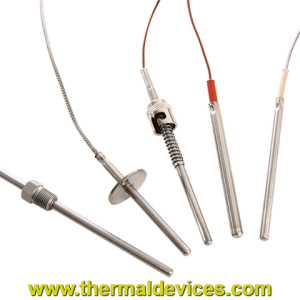

Rigid Sheath Thermocouples – Styles 20, 23, 24, 25, 30, & 40
The rigid sheath provides protection and accurate placement through bulkheads or platens. Use with a compression fitting for water tight immersion application.
Rigid sheath with threaded fitting provides accurate placement in process applications.
The flanged thermocouple allows rapid assembly and low profile when going through bulkheads.
Rigid Sheath Thermocouples – Styles 21, 22, 31, 32, 41 & 42
The rigid sheath provides protection and accurate placement through bulkheads or platens. Use with a compression fitting for water tight immersion application.
The bent rigid tube offers protection and accurate lead placement around machinery.
Contact a Thermal Devices’ Sales Engineer for more information! Or, request a quote.
